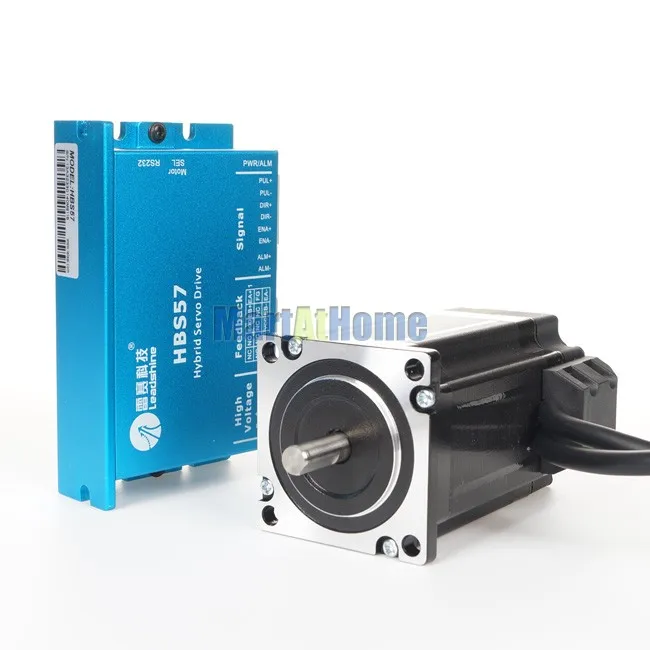

Upgraded Version 300W Leadshine Easy CNC Servo Driver Kit Servo Drive HBS57 & Motor 573HBM20 1000 #SM583 @SD

Upgraded Version 300W Leadshine Easy CNC Servo Driver Kit Servo Drive HBS57 & Motor 573HBM20 1000 #SM583 @SD
  • Продавецswtst.co
  • Список ценUS $199.90piece
  • Продажная ценаUS $199.90piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,4 (746)

Oписание продукта

sm583-1

I. HBS57 Servo Drive

20-50V, 8.0A Peak, No Tuning, Nulls loss of Synchronization

Features:



  • Closed-loop, eliminates loss of synchronization
  • Broader operating range ? higher torque and higher speed
  • Reduced motor heating and more efficient
  • Smooth motion and super-low motor noise
  • Do not need a high torque margin
  • No Tuning and always stable
  • Fast response, no delay and almost no settle time
  • High torque at starting and low speed, high stiffness at standstill
  • Lower cost



The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 3-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.



Applications:

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective.  Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don\'t want it to vibrate when stopping.



Specifications:

General

Connector Configuration

The HBS57 has three connectors, connector for control signals connections, connector for encoder feedback and connector for power and motor connections.



Typical Connection
sm583-figure4

Mechanical Specifications (unit: mm [inch])
sm583-figure5

II. Matching Motor 573HBM20-1000 Specifications:

573HBM20-1000 is the Upgraded version of 573S20EC-1000.

Specification:


Step angle

1.2°

Position accuracy

1.2°± 0.06°

Number of phase

3

Temp rise(Max.)

80 Celsius

Dielectric strength

500VDC

Insulation resistance

100 MOhm(500VDC)

Radial play

Max.0.025mm(Load 450g)

Axial play

Max.0.075mm(Load 920g)

Insulation class

B

Holding torque

2.0 Nm

Inertia

500 g.cm2

Weight

1.4 kg


sm583-figure6sm583-figure7
Package included:

1 x Leadshine 3-phase Hybrid Servo Drive HBS57
1 x 300W 573S20EC Motor
1 x DB Cable
1 x PC Cable
sm583-10sm583-11sm583-12sm583-13sm583-14sm583-15
